Posts Tagged ‘Titan Gallardo’

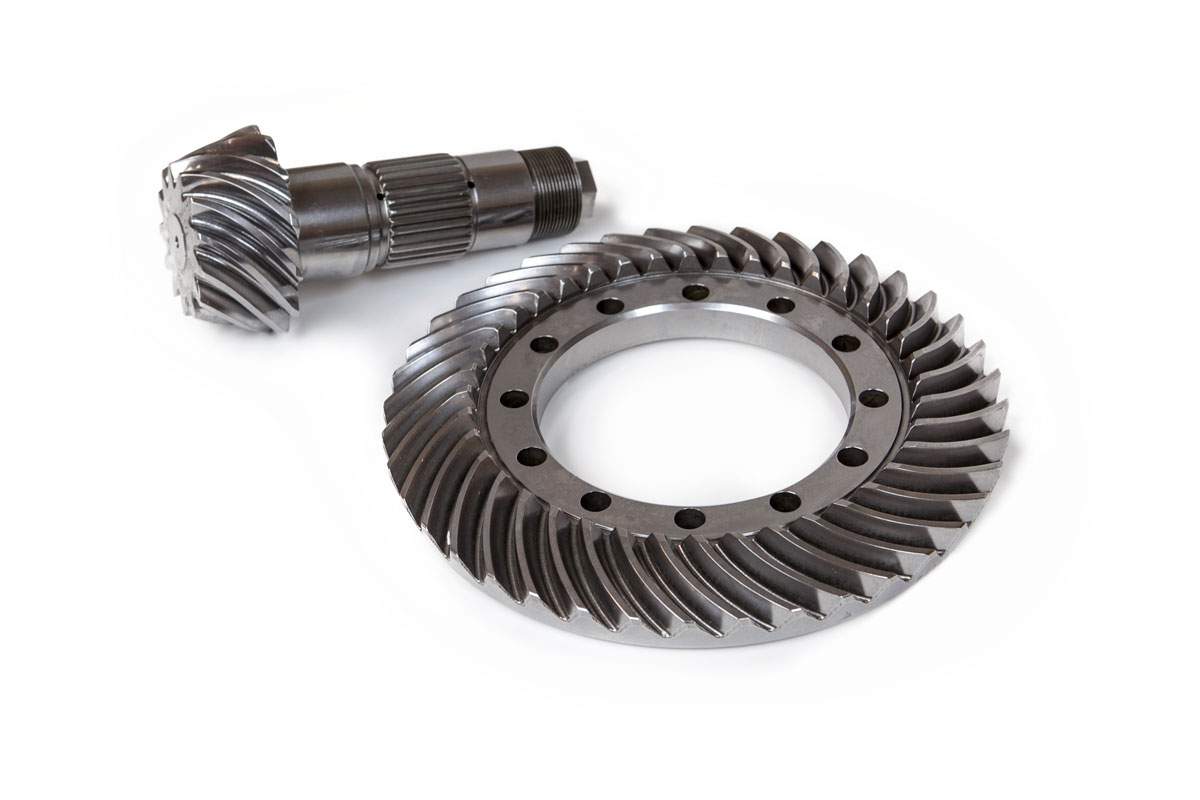

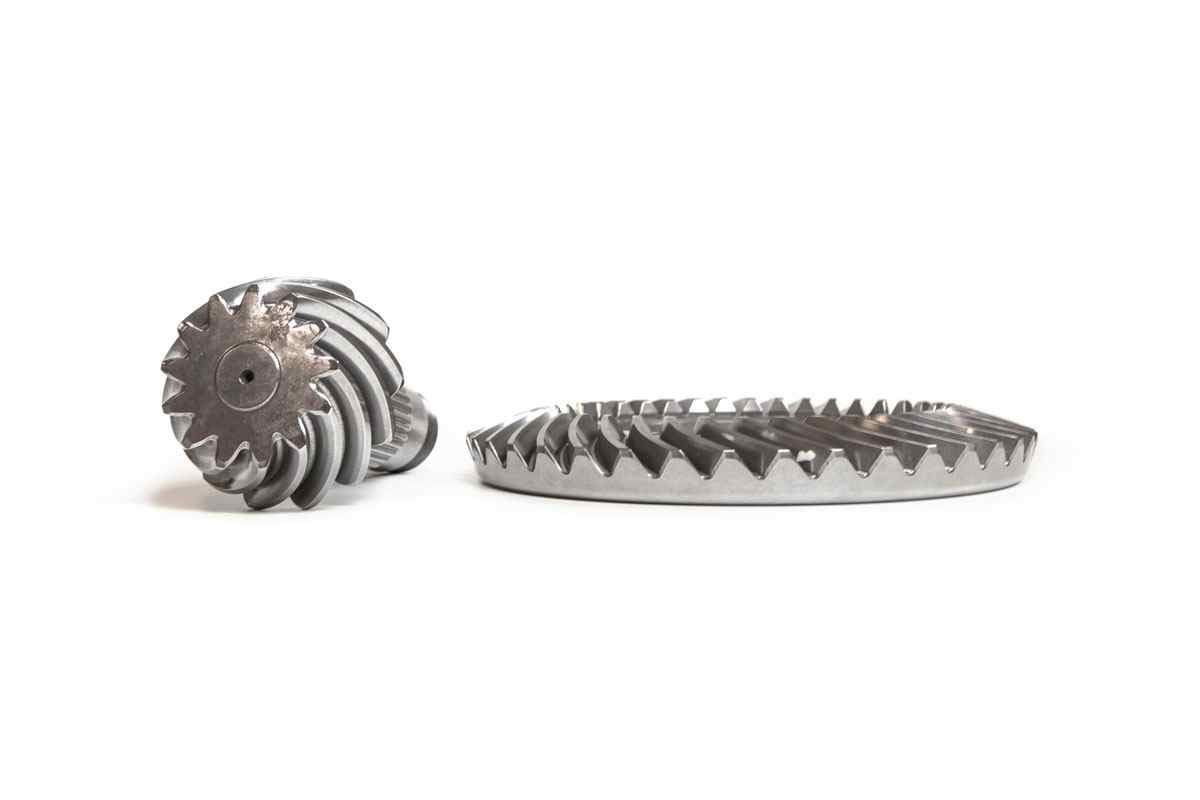

Titan Motorsports Upgraded Gallardo Ring and Pinion

September 26th, 2013 Comments off

Titan Motorsports has worked with its development partners to produce an upgraded ring & pinion designed to fit all Lamborghini Gallardo and LP models. This upgraded ring & pinion set features the Klingelnberg Palloid spiral bevel gear system and is machined from a solid billet of high grade steel. The Klingelnberg Palloid is designed to provide a beneficial rolling motion of the gear teeth as they mesh, although its method of production is generally more expensive than the typical Gleason and Oerlikon designs common in mass manufacturing. The Klingelnberg system maintains the tooth width along the crownwheel tooth unlike some other systems, this delivers an incredible increase in tooth strength. All manufacturing is carried out on state of the art CNC mills, lathes and gear cutting equipment. Once the initial machine work has been completed and all tolerances checked using a 5 Axis CNC co-ordinate measuring machine, the surfaces are then shot peened finished as an anti-fatigue treatment. The ring & pinion then are isotropically finished to deliver a superior working surface that reduces friction, drag, and heat preventing horsepower loss and delivering a quieter mesh that is more resistance to pitting and wear.

Available now on our website : Titan Motorsports Lamborghini Gallardo Ring Pinion

Titan Motorsports Fourth Annual Open House 2013

March 26th, 2013 Comments off

Thanks to everyone who attended our fourth annual open house, the attendance far exceded our expectations (we had over 750 rsvp on Facebook but estimates show 1,500-2,000 attended throughout the day). Thanks to the gracious donations from our sponsors and attendees we were able to raise $6,250.00 for the Just In Queso Foundation!

A special thank you to our vendors Manley, FuelLab, Royal Purple, DEI, Hawk, Cometic, Brembo, Mr. Gasket, ACL, Eibach, Deatsch Werks,Fluidampr, Race Ramps, Precision Turbo, Gates and Ferrea for their attendance and donations. We look forward to holding this great event next year, and hope to raise even more money for great causes in 2014.

Titan Gallardo takes a few hot laps around Sebring International Raceway

June 2nd, 2011 Comments off

Brandon Connelly and Peter Tromboni snapped these great pictures of our Gallardo Twin Turbo at Sebring International during the inaugural FCRA event. We invited accomplished driver and coach Jon Miller took the car out for 10-12 hot laps, with over 850hp on tap on 93 octane the car was exceptionally fast on track. We were able to achieve great cornering speeds with the Toyo R888s on the car, and managed to hit 185mph entering the braking zone for turn 17, a speed rarely seen at Sebring aside from LMP cars. The factory brakes weren’t happy stopping the car from such speeds, so a pad upgrade will be in the cars future for future track outings. After a day in the heat we couldn’t be more happy with how the car performed and look forwards to more track testing at Sebring in the near future. The heat, varying pavement conditions, 3 long straights, and plenty of treacherous corners throughout it’s 3.7 mile length make it the perfect place to take a car like this to it’s limits and gather valuable data.
